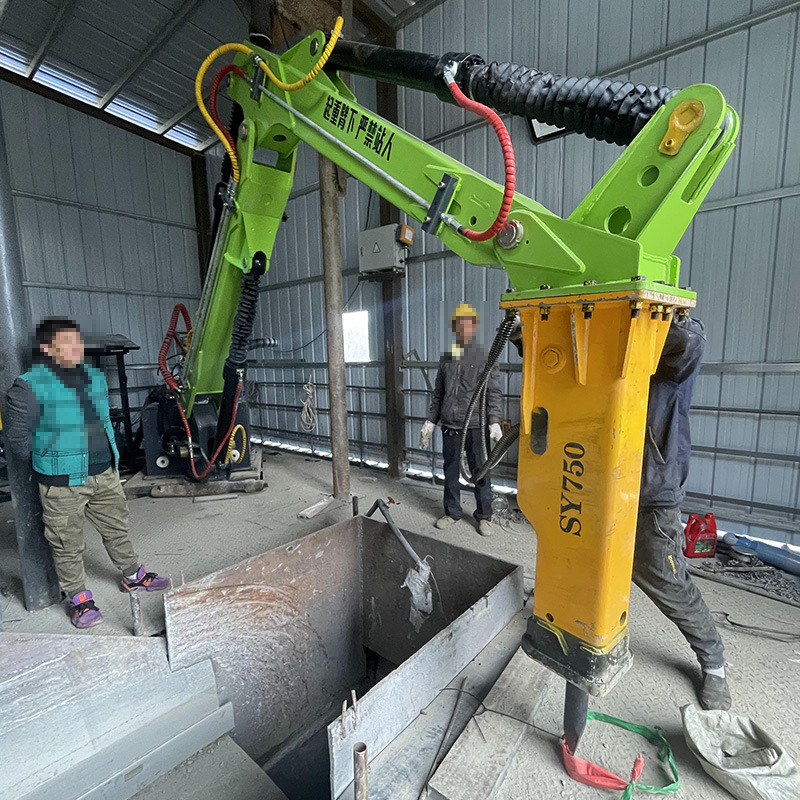

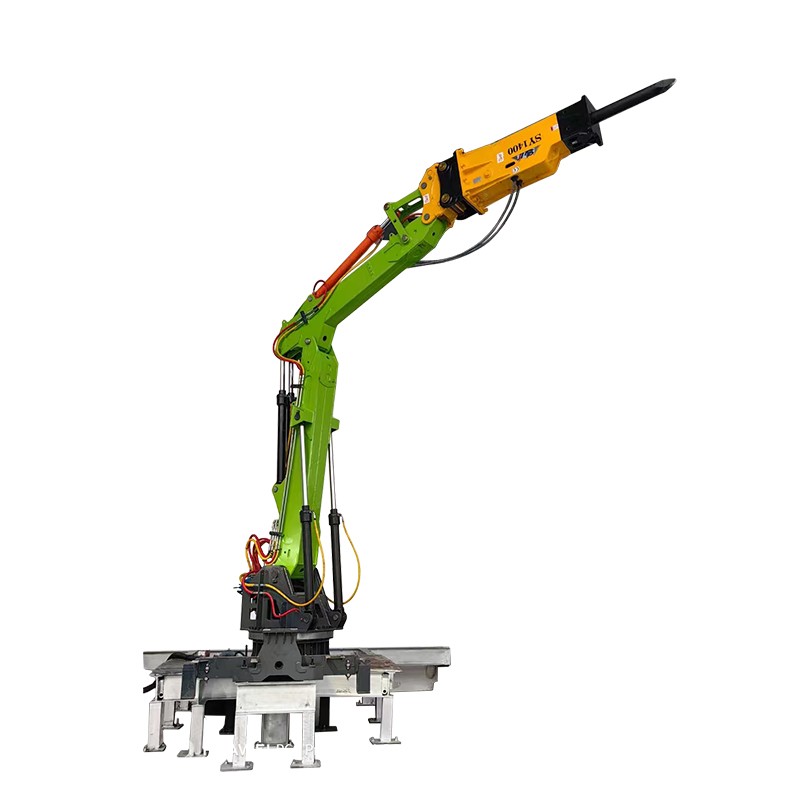

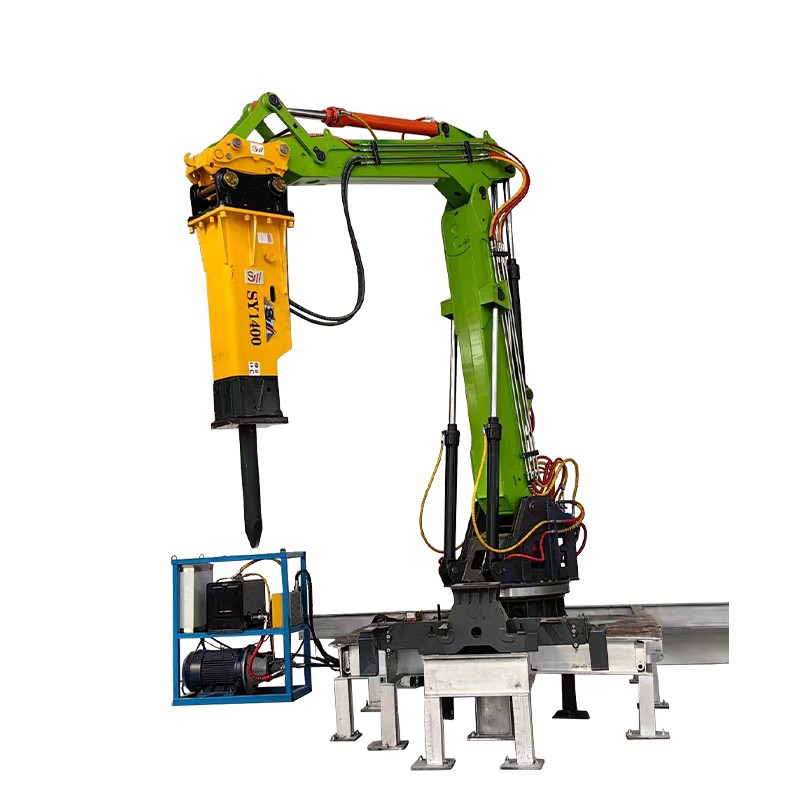

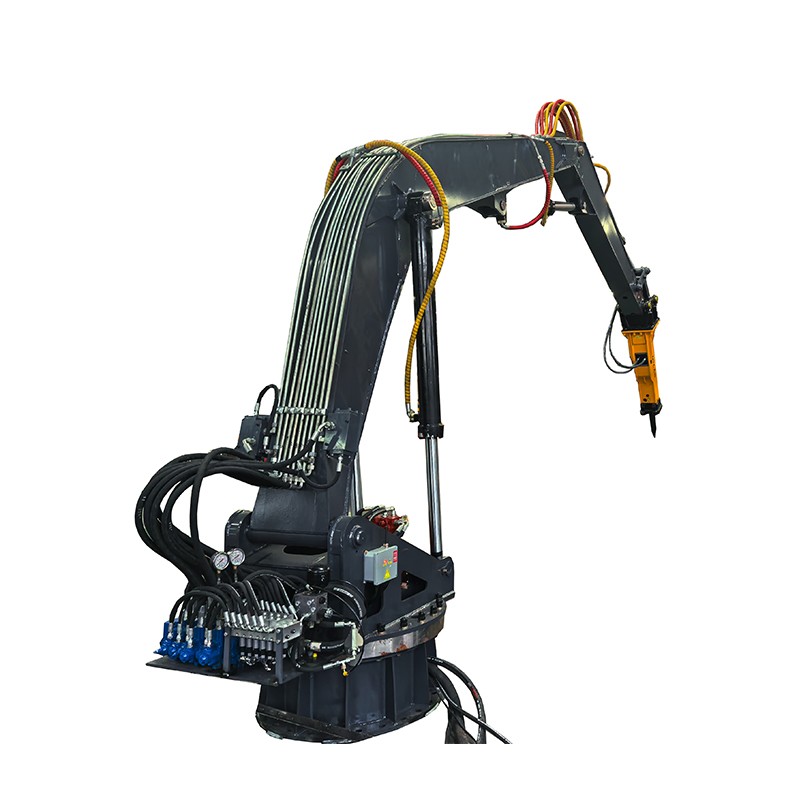

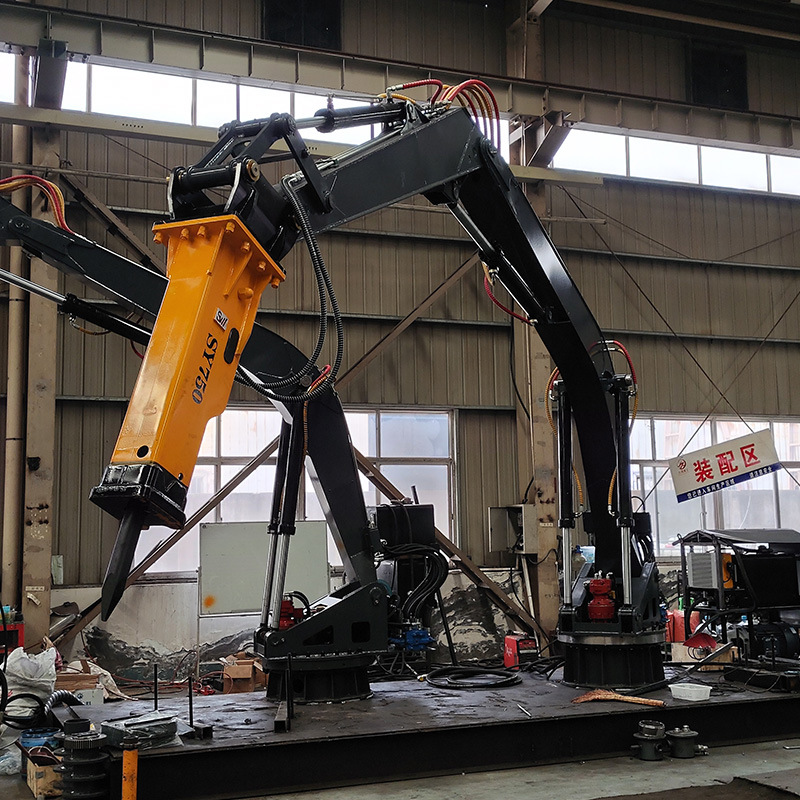

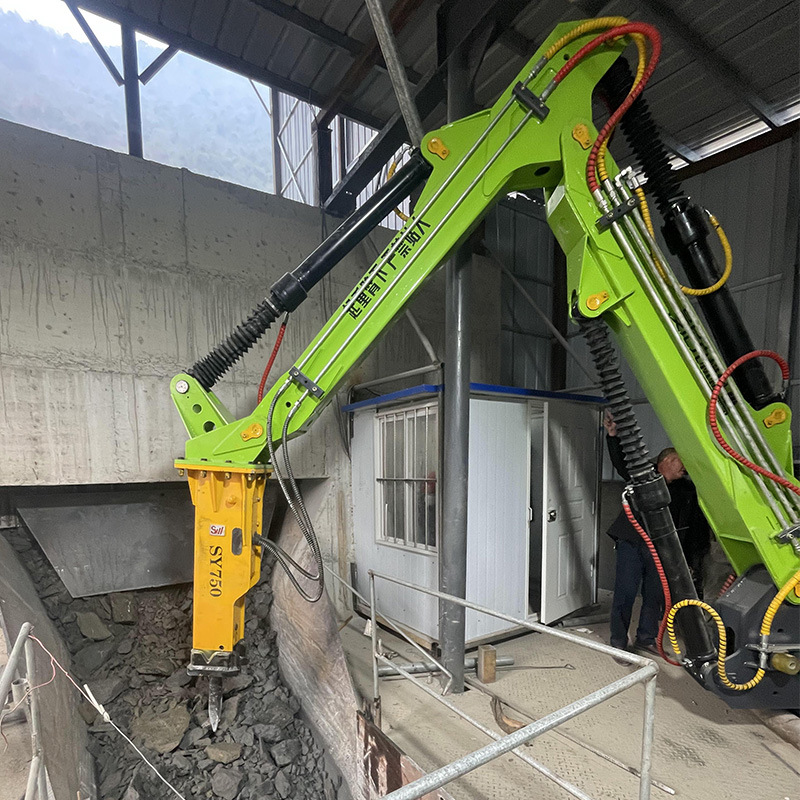

Rock Breaker Boom

Boom Type: Bent Boom, Straight Boom

Product Details

Product Tags

Boom Breaker

1. Greatly reduce the blockage and downtime, reduce manual labor intensity and time.
2. Remote operation, improve the level of safety operation.
3. Reduce the operating cost of the crushing system, making the crusher run healthier and with less wear and tear.
4. the cost of electricity is only 1/6 of the cost of fuel consumption of excavators with the same power.
5. Improve primary crusher product by up to 20%.


Type
BHA300BHA400
Working boom weight (without hammer)kg19122014
Maximum working radius (R1)mm48805850
Maximum vertical working radius (R2)mm33404240
Minimum vertical working radius (R3)mm16101910
Maximum height (H1)mm33403950
Maximum working depth (H2)mm31703140
Swing Boom Angle
360
Applicable crushing hammer models
750/800/850
Recommended hydraulic station powerkW18/22/30



Type
BHB350BHB450BHB500BHB600
Working boom weight (without hammer)kg3030316032503410
Maximum working radius (R1)mm5890696073308280
Maximum vertical working radius (R2)mm3830490053106230
Minimum vertical working radius (R3)mm1790173021501600
Maximum height (H1)mm3580413046004800
Maximum working depth (H2)mm3750460048005800
Swing Boom Angle
360
Applicable crushing hammer models
1000/1250
Recommended hydraulic station powerkW37/45/55



Type
BHC500BHC550BHC630
Working boom weight (without hammer)kg639064106510
Maximum working radius (R1)mm810085609120
Maximum vertical working radius (R2)mm590062707100
Minimum vertical working radius (R3)mm269026002705
Maximum height (H1)mm5650565063604
Maximum working depth (H2)mm464052505880
Swing Boom Angle
360
Applicable crushing hammer models
1350/1400
Recommended hydraulic station powerkW55/75



Type
BHD600BHD650BHD670BHD750
Working boom weight (without hammer)kg7580768077207882
Maximum working radius (R1)mm89409410960010390
Maximum vertical working radius (R2)mm6650713573208100
Minimum vertical working radius (R3)mm2280243025402440
Maximum height (H1)mm6150610063506660
Maximum working depth (H2)mm5220586057606440
Swing Boom Angle
360
Applicable crushing hammer models
1350/1400/1500/1550
Recommended hydraulic station powerkW75/90
