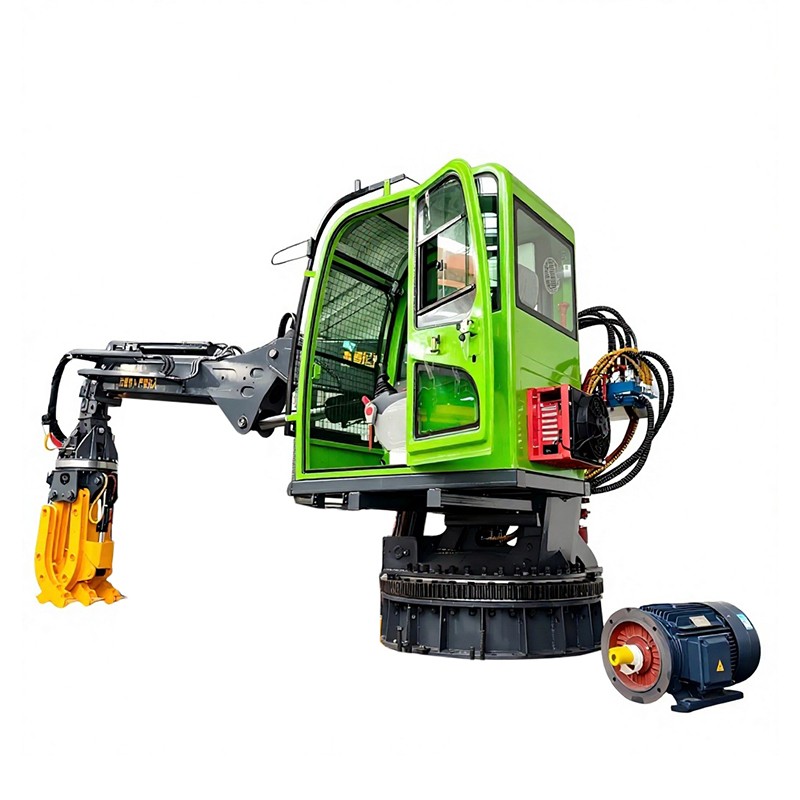

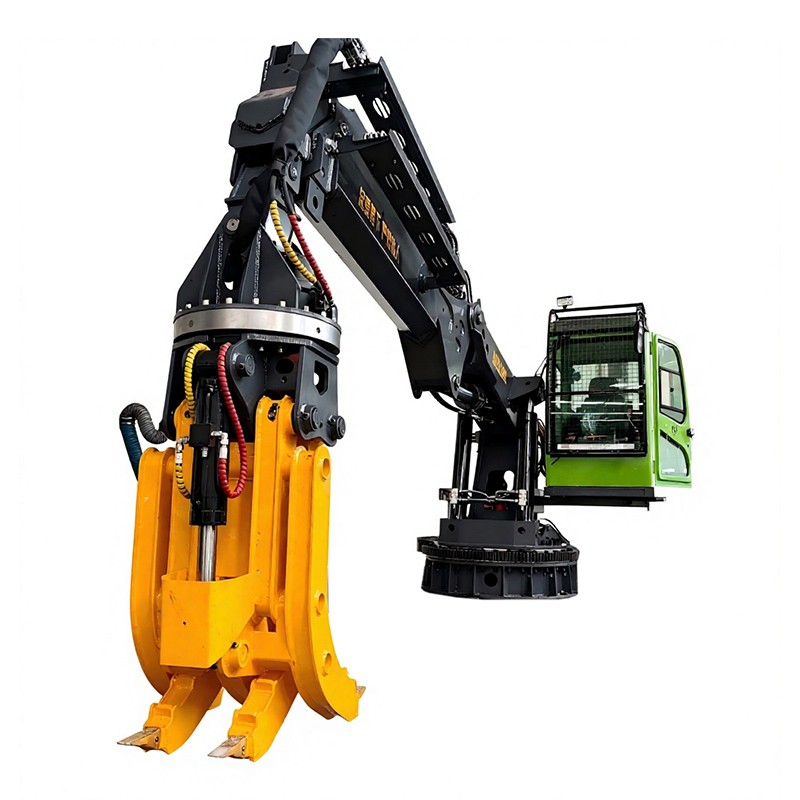

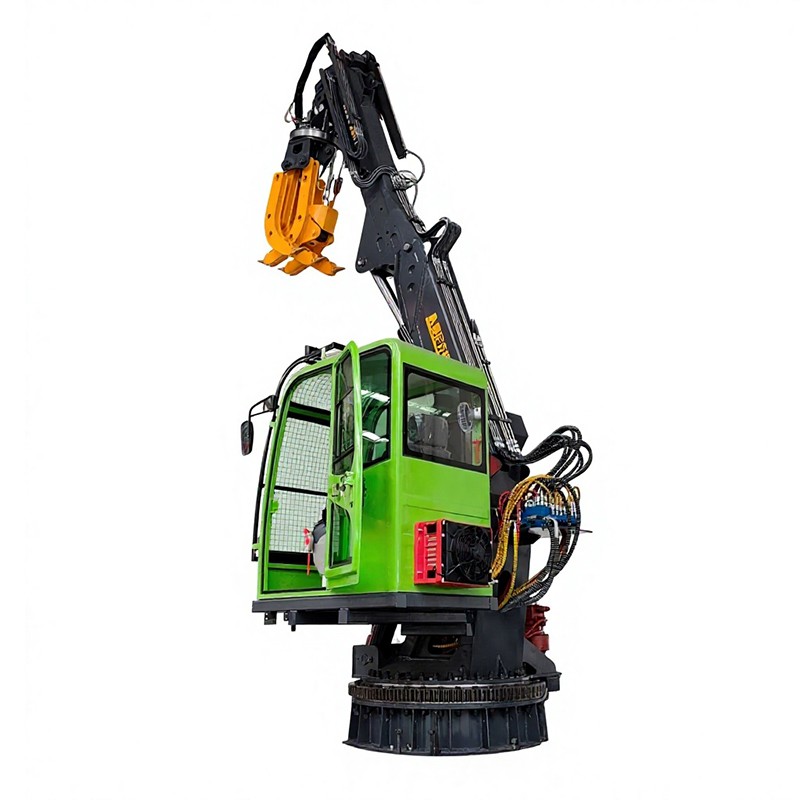

6m telescopic boom stationary grab crane

Boom length: 6m
Lifting capacity: 2000kg (boom full extended)
Grapple type: 3+2 soft link

INQUIRY

Product Details

Product Tags

6M Stationary Grab Crane with 3+2 Soft Link Grapple and AC Cabin

1.Heavy-duty structure made from high-strength 700 MPa manganese steel for maximum durability and stability.
2, Heat-treated 20CrMn alloy steel slewing system provides high torque, smooth rotation, and long service life.
3. Mannick customized hydraulic cylinders with 10-layer seals ensure reliable performance and reduced maintenance.
4. 80 L/min high-flow hydraulic system with simultaneous operation capability for higher working efficiency.
5. Hydraulic safety locks, balance valves, automatic oil cooler, and 360° rotating grapple ensure safe and continuous operation.

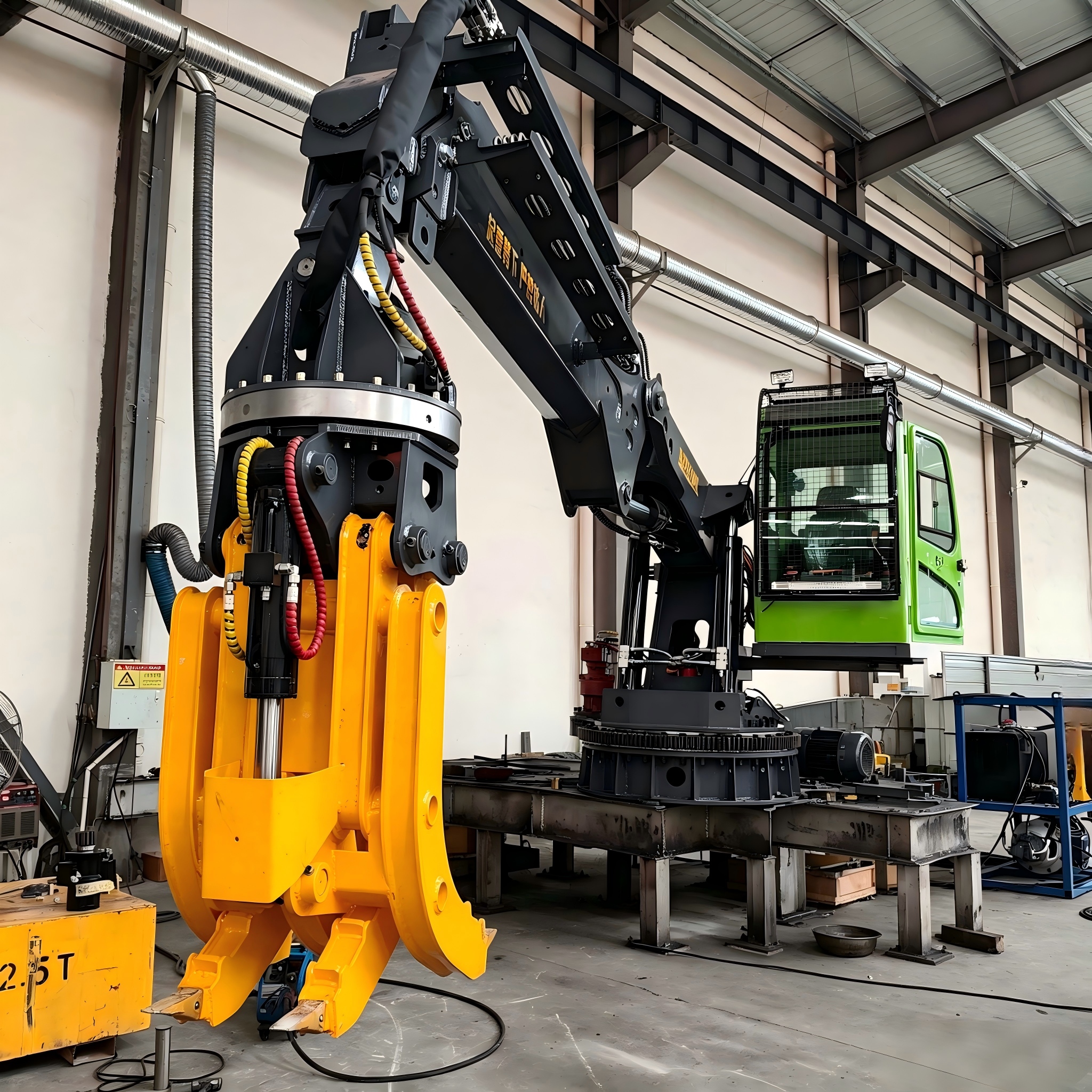

1 (8).jpg

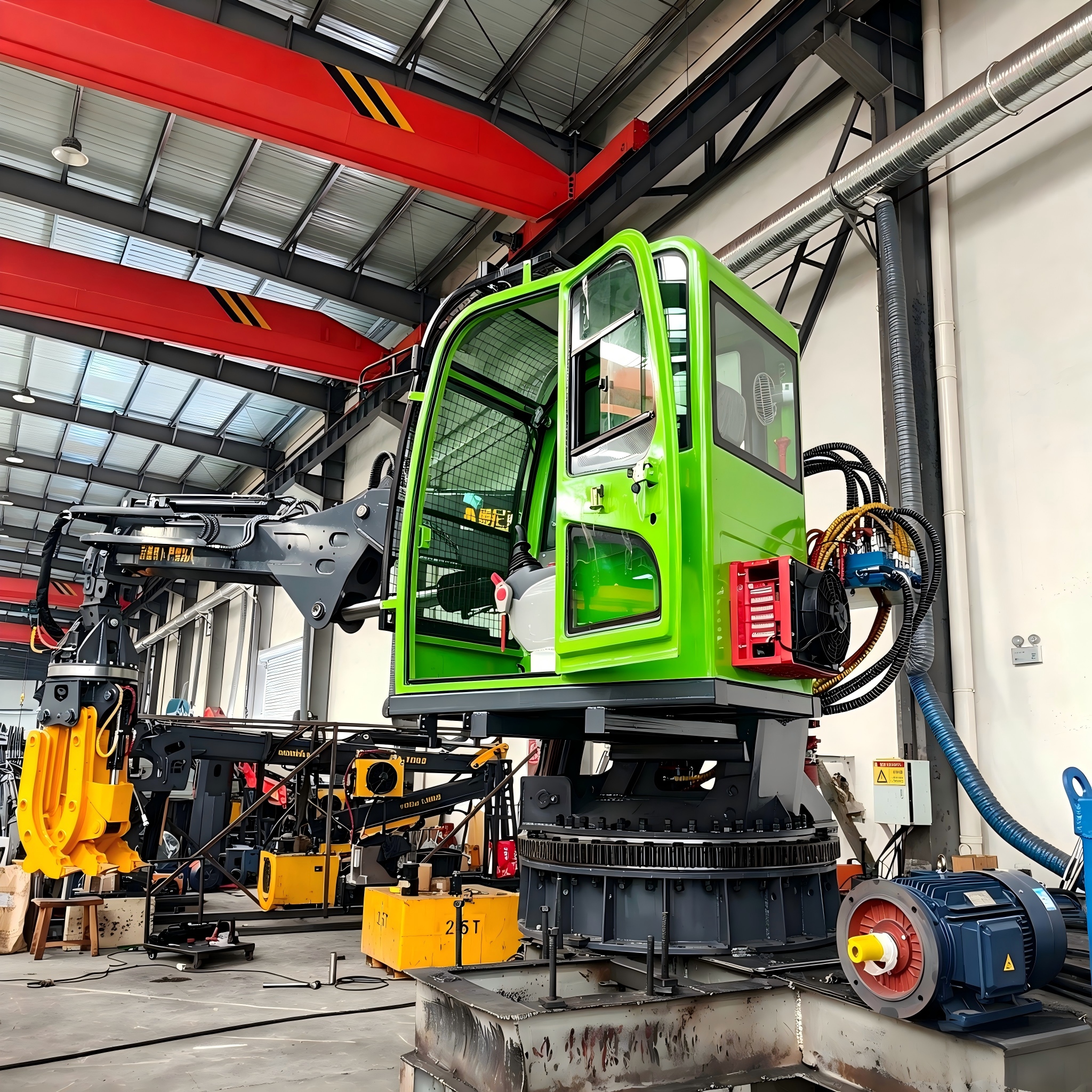

1 (9).jpg

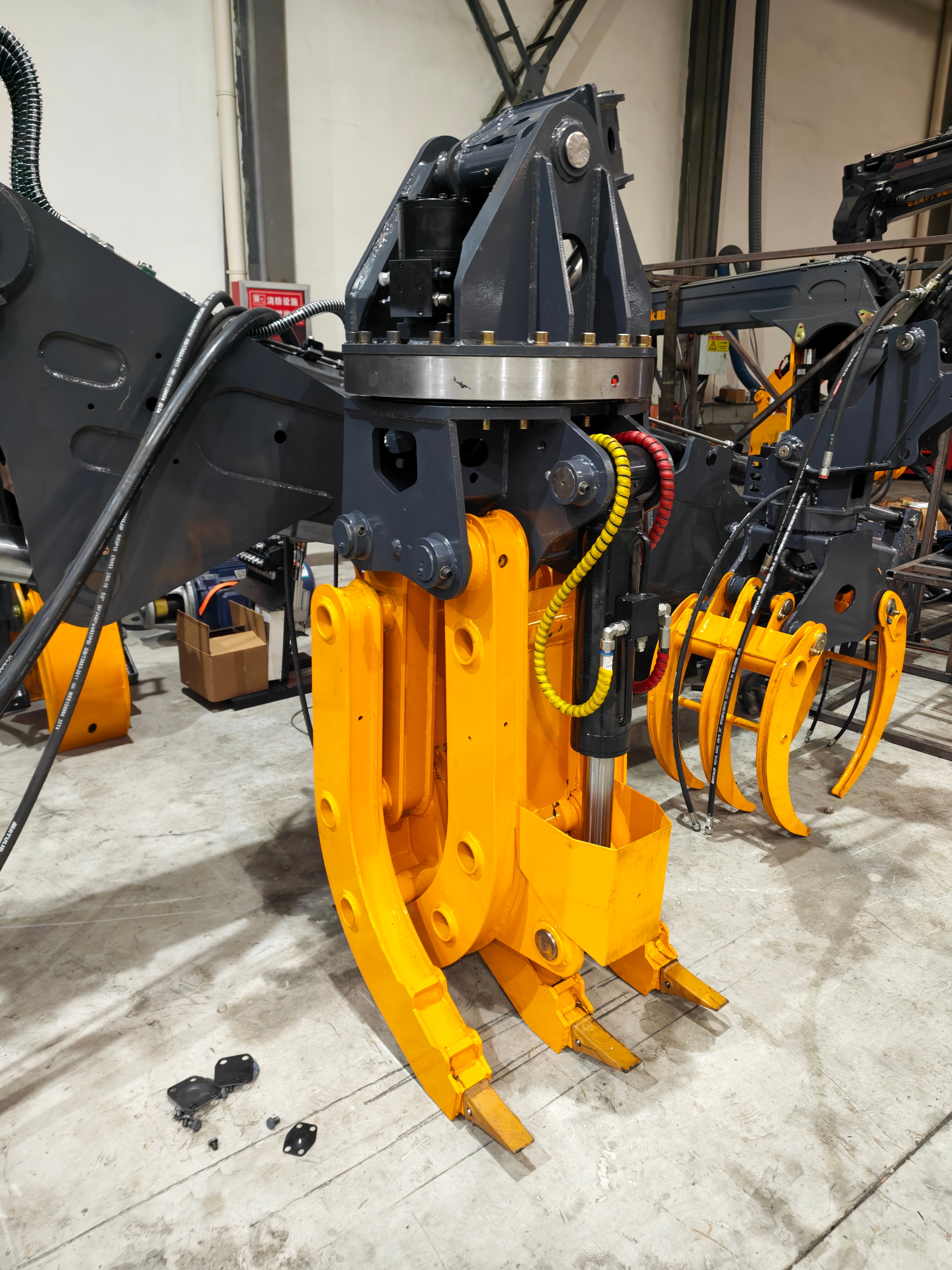

1 (2).jpg

Parameter	Value
Safe Working Load	2 t
Retracted Boom Length	4.5 m
Extended Boom Length	5.7 m
Slewing Angle	360° (continuous)
Slewing Speed	Approx. 3 r/min
Working Radius	3 – 5.7 m
Luffing Angle	-10° ~ 75°
