MNK-CZ800-5 Knuckle Boom Marine Crane

MNK-CZ800-5 Knuckle Boom Marine Crane
Product Number：MNK-CZ800-5
Maximum lifting Moment：220KN.m
Maximum lifting capacity：8000kg
Number of boom telescopic sections：5
Maximum wording range：16m

Product Details

Product Tags

This 8 Ton Folding Boom Marine Crane has an 8000kg maximum lifting capacity and a 220KN.m maximum lifting moment. It weighs 3400kg and has a 360-degree rotation angle.

MNK-CZ800-5 Knuckle Boom Marine Crane Parameters

Product NumberMNK-CZ800-5
Maximum lifting Moment220KN.m
Maximum lifting capacity
8000kg
Number of boom telescopic sections5
Maximum wording range16m
Maximum lifting height18.2m(Distance from crane support surface)
Amplitude angle1~80°
Rotation angle360° full rotation
Rotation speed1.4~1.6r/min
Rated working pressure28Mpa
Rated flow40L/min
Crane self weight3400kg

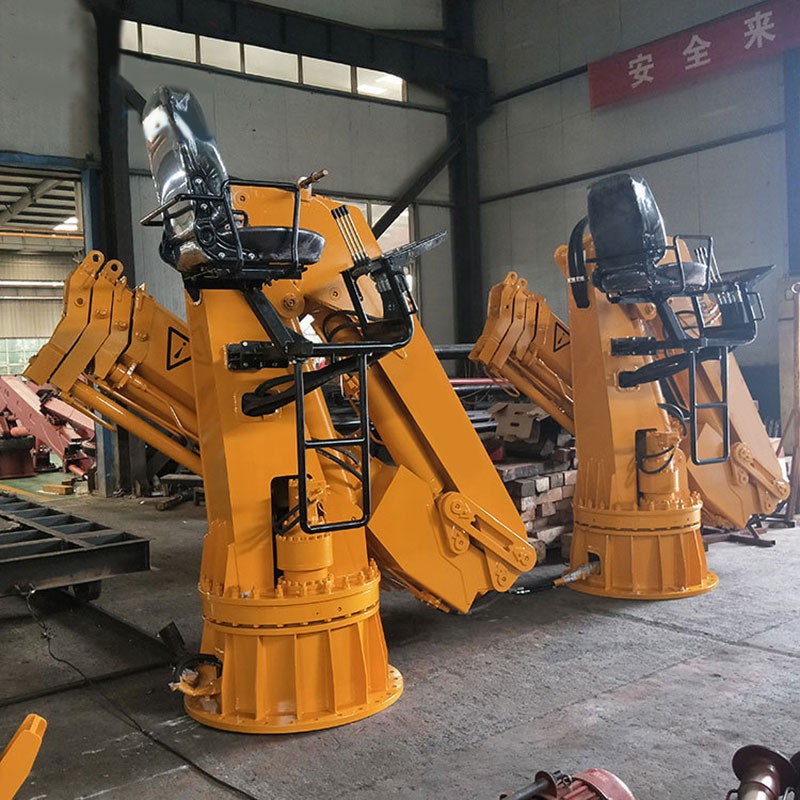

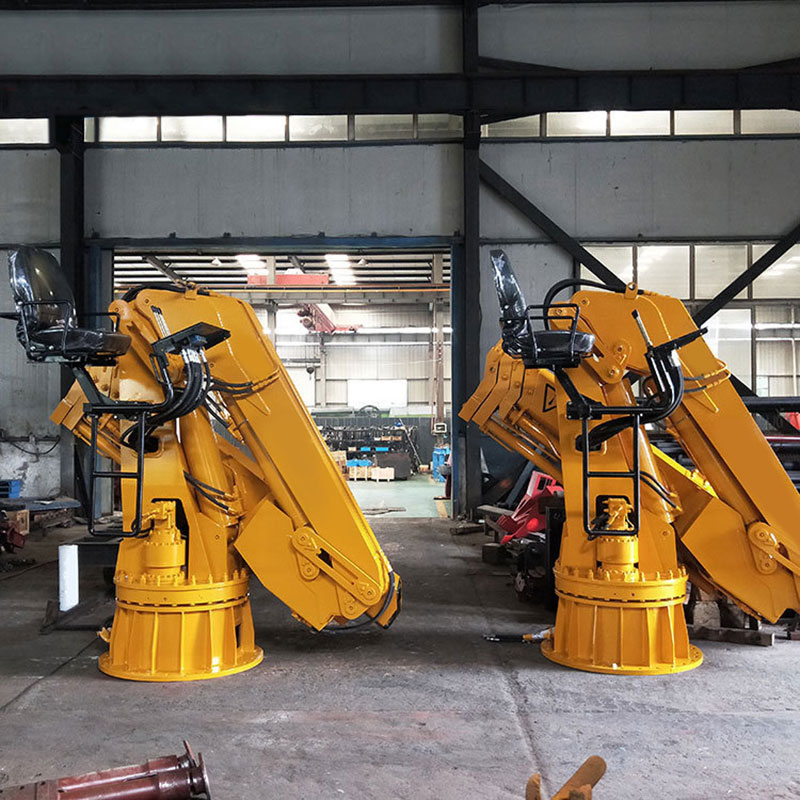

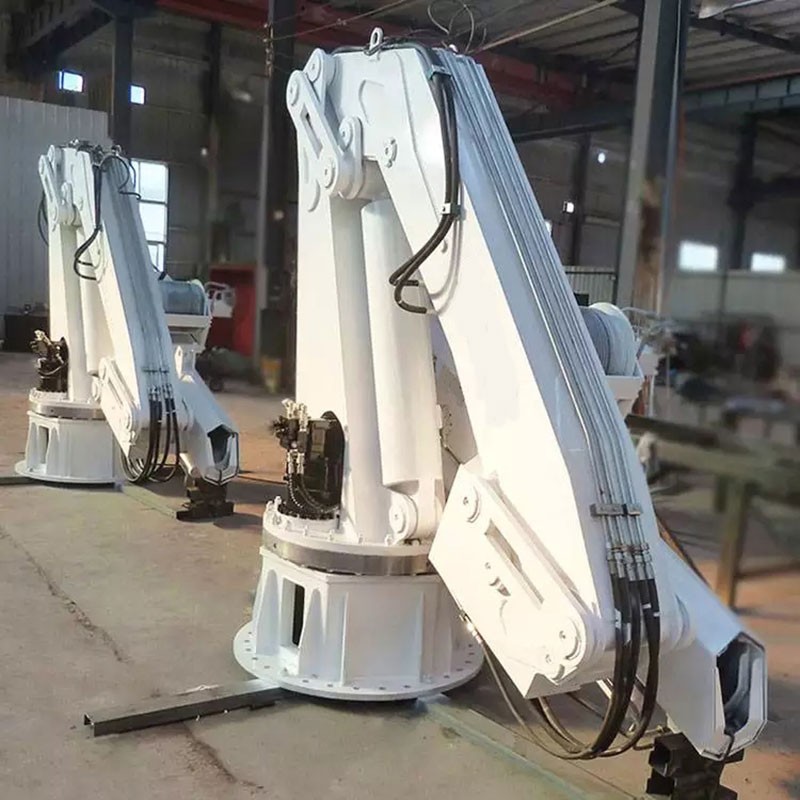

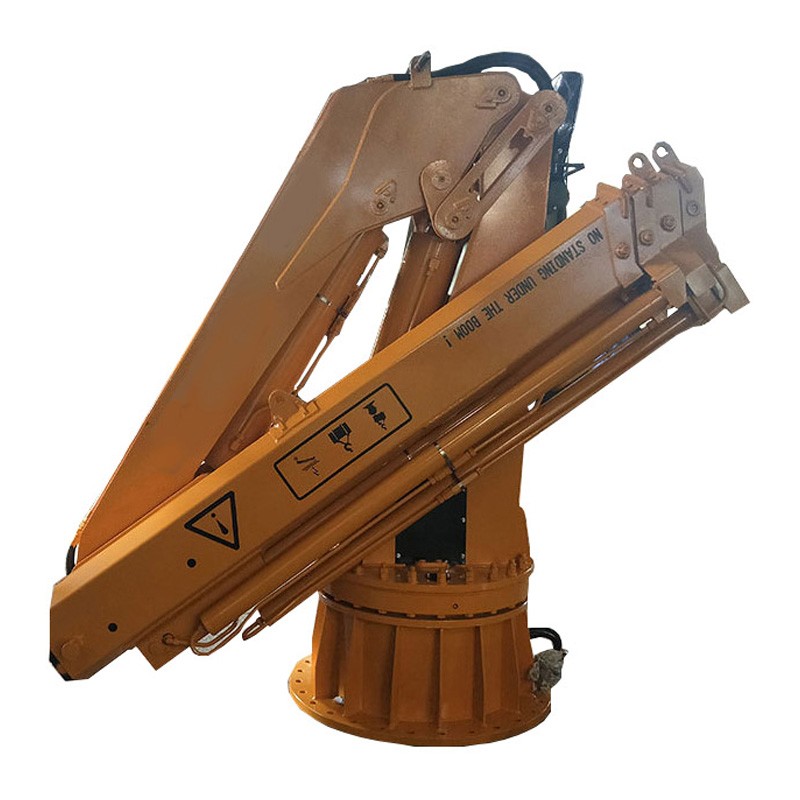

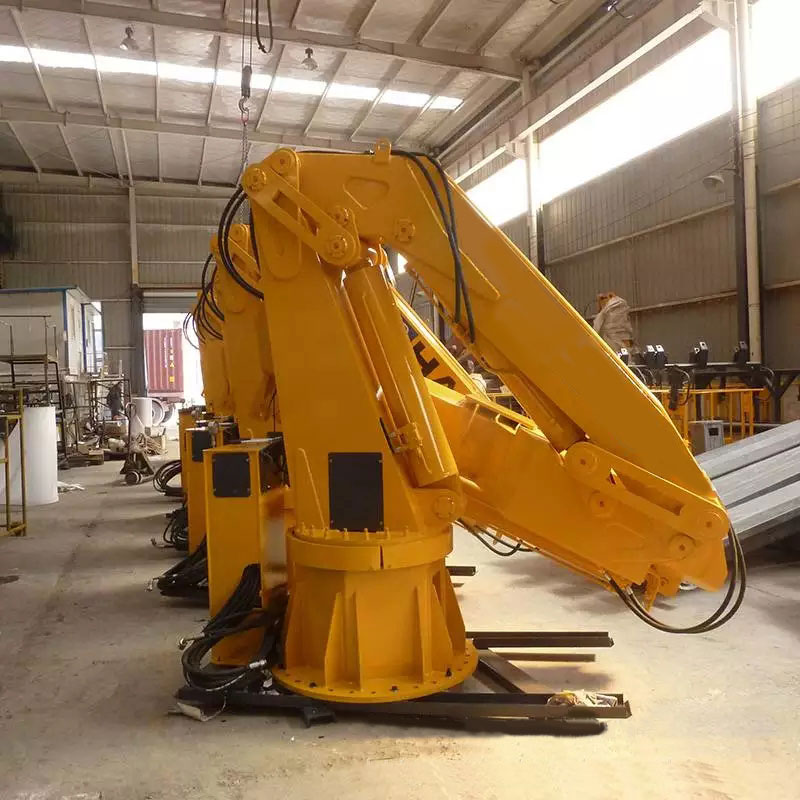

MNK-CZ800-5 Knuckle Boom Marine Crane Details
