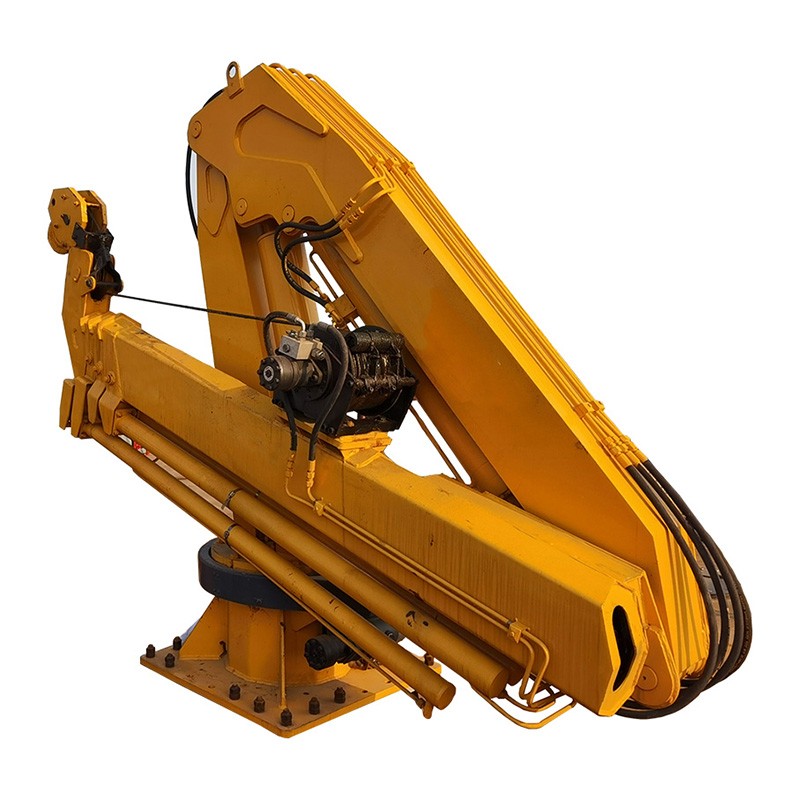

MNK-CZ500-5 Knuckle Boom Marine Crane

MNK-CZ500-5 Knuckle Boom Marine Crane
Product Number：MNK-CZ500-5
Maximum lifting moment：128KN.m
Maximum lifting weight：5000kg
Number of boom telescopic sections：5
Maximum working range：13.5m

Product Details

Product Tags

The MNK-CZ500-5 Knuckle Boom Marine Crane is an advanced machine designed to improve performance, reliability, and efficiency. The crane is compact, has a good weight-to-load ratio, and is more compact.

MNK-CZ500-5 Knuckle Boom Marine Crane Parameter

Product NumberMNK-CZ500-5
Maximum lifting moment128KN.m
Maximum lifting weight5000kg
Number of boom telescopic sections5
Maximum working range13.5m
Maximum lifting height15.5m(Distance from crane support serface)
Luffing angle0~80°
Rotation angle360° full rotation
Rotation speed
1.2~1.5r/min
Rated working pressure
28Mpa
Rated flow
40L/min
Crane self weight
2300kg

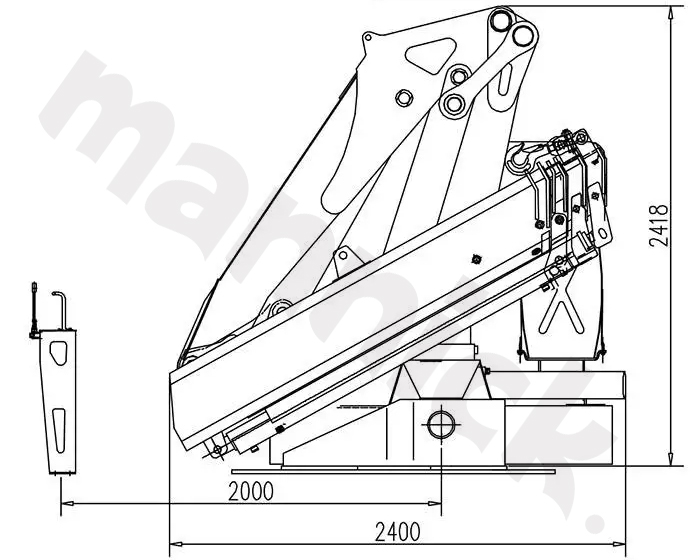

MNK-CZ500-5 Knuckle Boom Marine Crane Details
