MNK-CZ37500-7 Knuckle Boom Marine Crane

MNK-CZ37500-7 Knuckle Boom Marine Crane
Product Number：MNK-CZ37500-7
Maximum lifting moment：750KN.m
Maximum lifting weight：37500kg
Number of boom telescopic sections：7
Maximum working range：18.2m

Product Details

Product Tags

The MNK-CZ37500-7 Knuckle Boom Marine Crane is an advanced machine designed to improve performance, reliability, and efficiency. The crane is compact, has a good weight-to-load ratio, and is more compact.

MNK-CZ37500-7 Knuckle Boom Marine Crane Parameter

Product NumberMNK-CZ37500-7
Maximum lifting moment750KN.m
Maximum lifting weight37500kg
Number of boom telescopic sections7
Maximum working range18.2m
Maximum lifting height20.7m(Distance from crane support serface)
Luffing angle0~80°
Rotation angle360° full rotation
Rotation speed
1.2~1.5r/min
Rated working pressure
30Mpa
Rated flow
50+63L/min
Crane self weight
8300kg

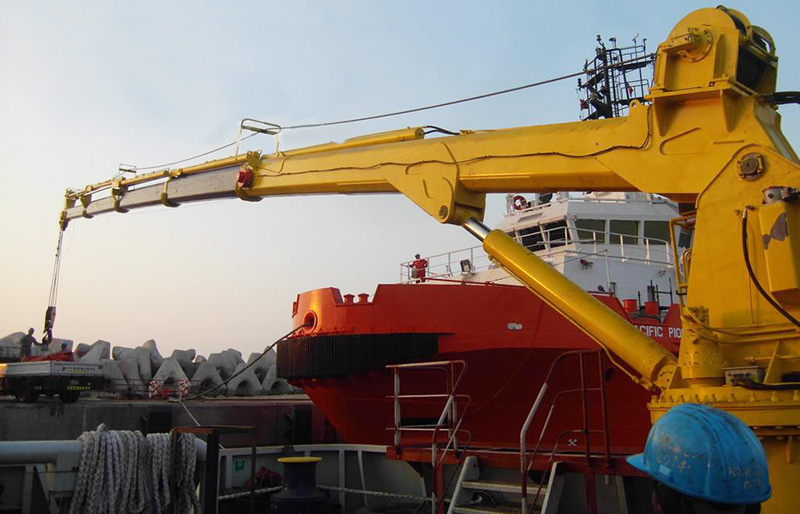

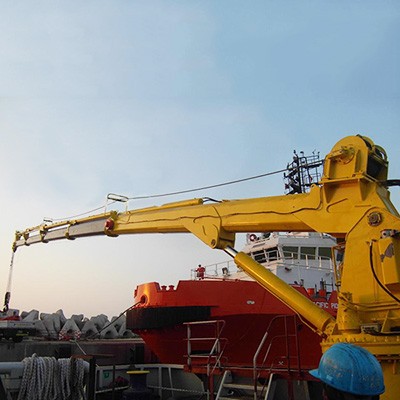

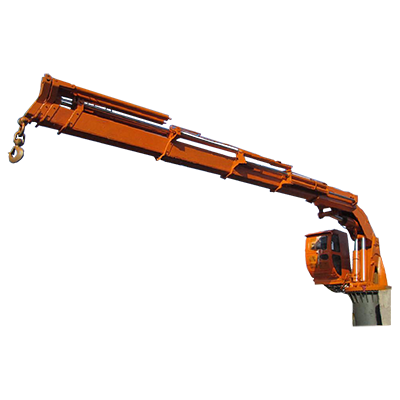

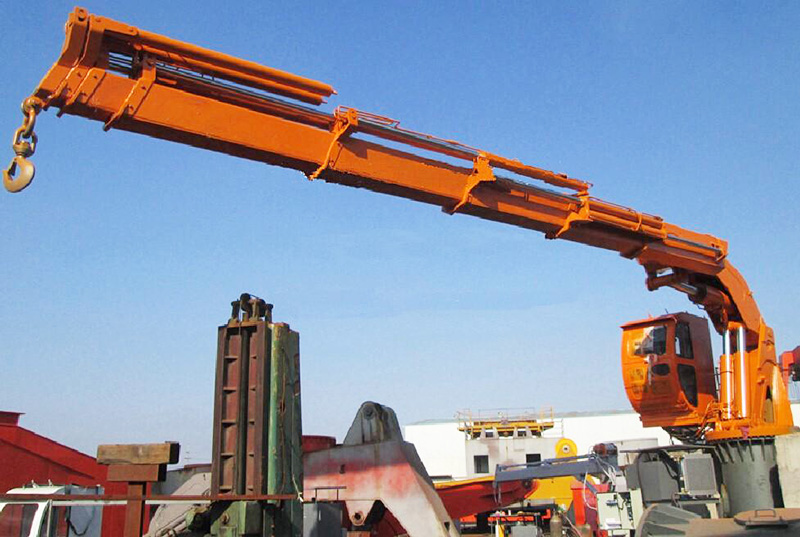

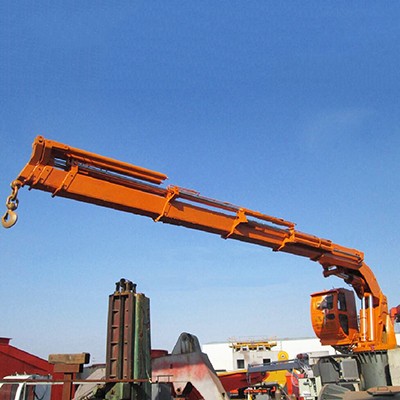

MNK-CZ37500-7 Knuckle Boom Marine Crane Details



  • PREVIOUS：MNK-CZ1600-6 Knuckle Boom Marine Crane

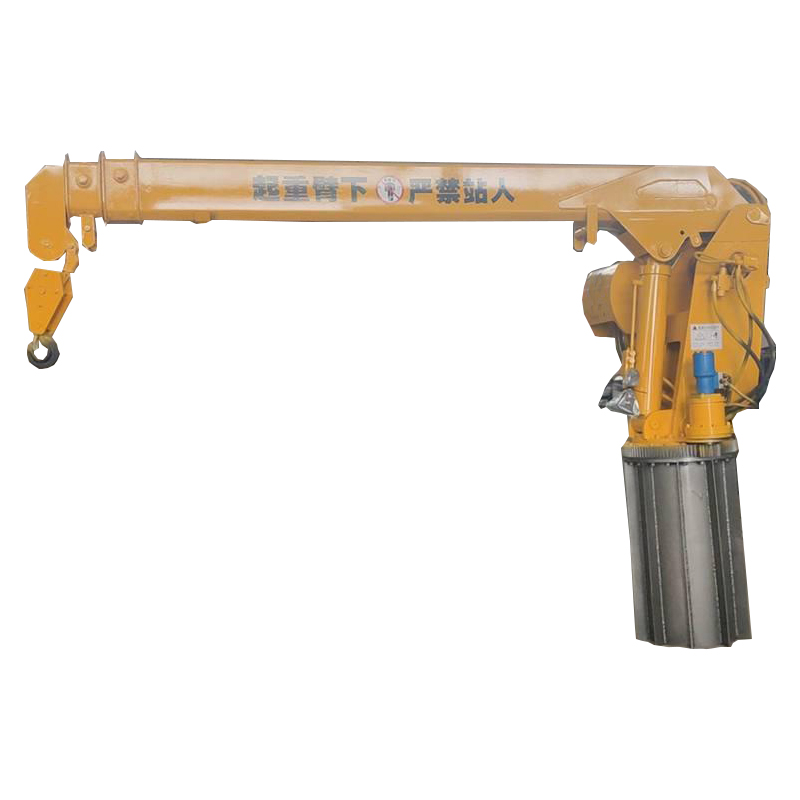

  • NEXT：2 Ton Folding Boom Marine Crane
